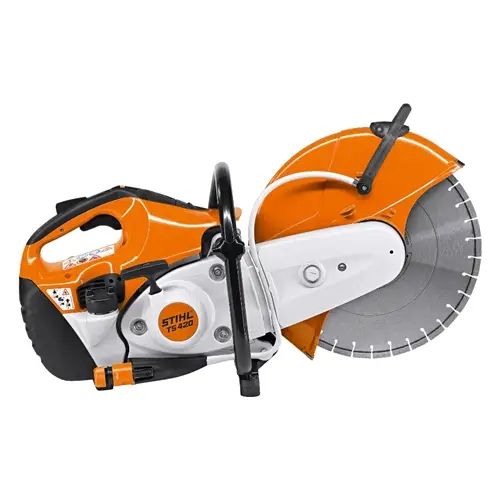

STIHL 14" Cutquick Concrete Cut-Off Saw 66CC Gas Engine TS 420

The STIHL TS 420 is so popular that it could be considered the standard against which other cut-off machines are compared. Users appreciate its compact size, lightweight design, reliability, and proven performance that holds up day in and day out.

The TS 420 includes all the high-performance features of the TS 410, such as the X2 Air Filtration System, which delivers a clean, smooth-running engine and virtually maintenance-free air filters. With the added benefit of a 14-inch cutting wheel, this cut-off machine handles cuts up to 4.9 inches in depth.

Its increased cutting capacity is matched by a wide range of usability-focused features designed to support professional performance.

Note: Abrasive wheel included. Diamond wheel sold separately.



Features

• Water connection with shut-off valve and quick connector
• Ergonomic top-handle bar design provides a comfortable grip in any working position
• ElastoStart starter handle with built-in shock absorber reduces the effort required when pulling the starter cord
• Anti-Vibration System helps reduce operator fatigue and improves comfort
• Semi-Automatic Belt Tensioning increases the service life of belts and shaft bearings
• X2 Air Filtration System allows air filters to last up to a year, depending on cutting conditions
• IntelliCarb Compensating Carburetor maintains consistent RPM by measuring air pressure on the clean side of the air filter and adjusting the metering diaphragm



Manufacturer Specifications

• Power Source: Gas
• Displacement: 66.7 cc
• Engine Power: 4.4 bhp
• Fuel Capacity: 24 oz
• Engine Speed: 9,000 rpm
• Max Spindle Speed: 5,350 rpm
• Max Wheel Size: 14 inches
• Max Cutting Depth: 4.9 inches
• Arbor Size: 0.787 inches



Specifications – More Information

• MPN: TS 420
• UPC / GTIN: 886661002009
• Product Type: Concrete & Masonry Saws
• Diameter: 14"
• Power Method: Gas
• Shipping Weight: 28.00
