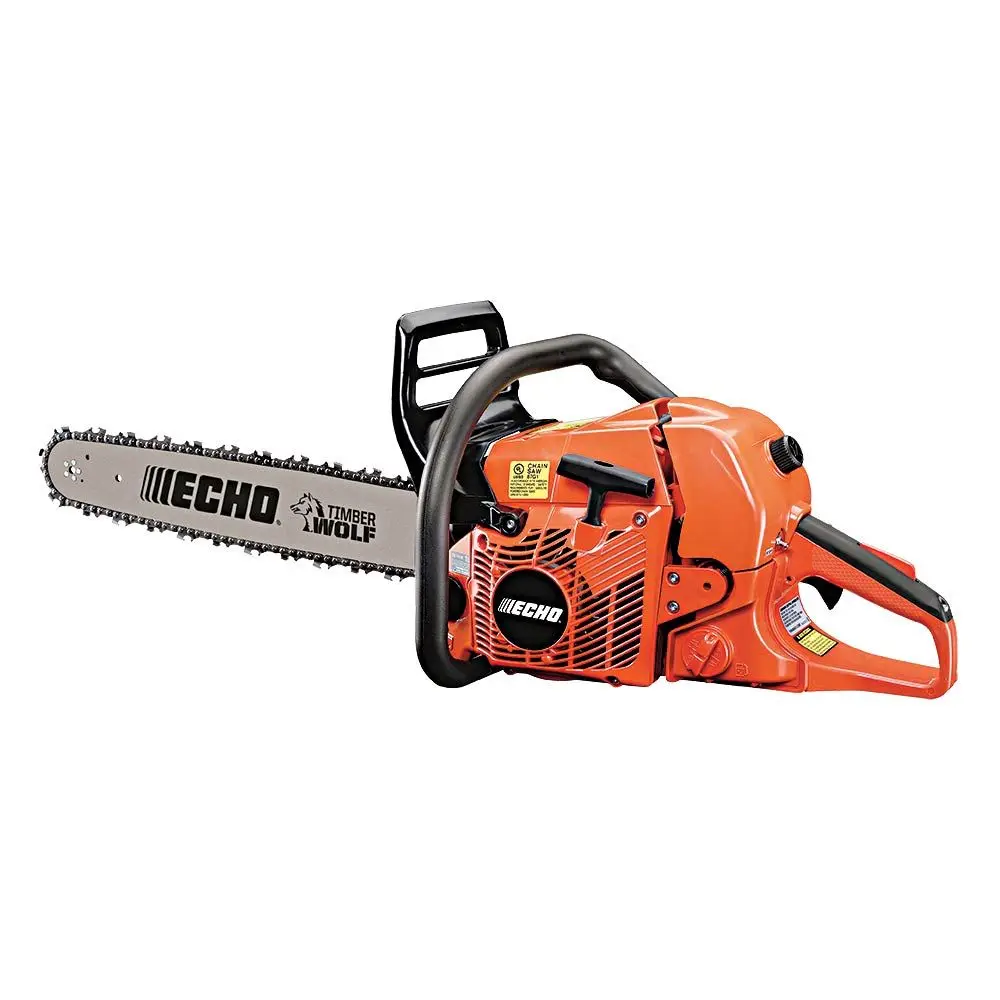

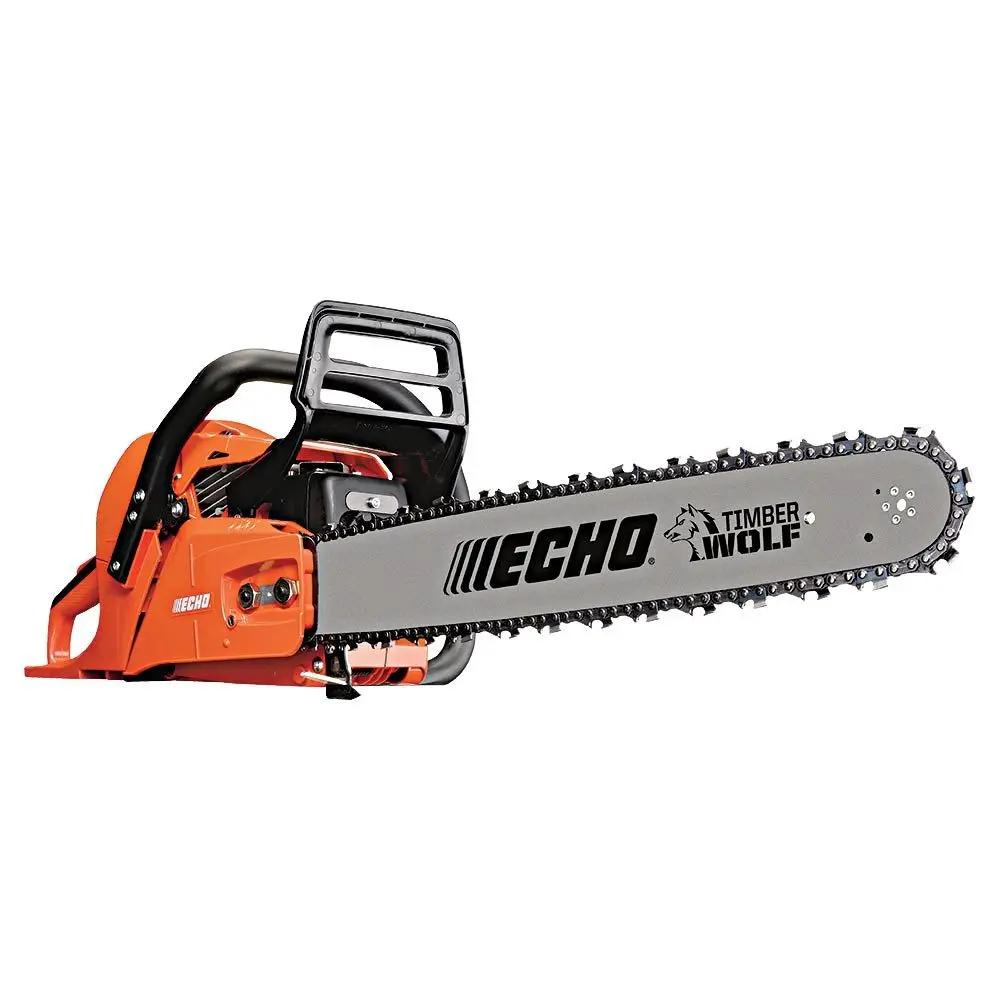

ECHO Timber Wolf CS-590 20" Chainsaw

ECHO CS-590 Timber Wolf 20-Inch Chainsaw — Product Specifications

Specifications

• Manufacturer Part Number: CS-590-20
• Brand: ECHO
• Engine Displacement: 59.8 cc (3.64 cu. in.)
• Engine Type: Professional-grade 2-cycle engine
• Starting System: Standard
• Ignition System: Digital
• Oiling System: Automatic and adjustable, clutch-driven
• Vibration Reduction: Standard
• Compatible Bar Lengths: 18", 20", and 24"
• Included Bar Length: 20"
• Bar Type: Pro-Lite with ProAm material
• Sprocket Type: Spur
• Sprocket Cover: Plastic
• Handle: Plastic
• Fuel Capacity: 21.8 fl. oz.
• Oil Capacity: 10.2 fl. oz.
• Dry Weight: 13.2 lb.
• Shipping Weight: 21 lb.
• Carburetor: Butterfly-valve diaphragm without purge pump

Key Features

• Professional-Grade Performance: The 59.8 cc 2-cycle engine is designed for demanding cutting and commercial applications.
• 20-Inch Cutting Bar: The included 20-inch bar makes the CS-590 a versatile rear-handle chainsaw for felling, bucking, firewood cutting, and general heavy-duty work.
• G-Force Engine Air Pre-Cleaner: Helps reduce debris reaching the air filter, supporting cleaner engine operation and longer filter life.
• Tool-Less Two-Piece Air Filter: Allows for easier access and routine maintenance.
• Automatic Clutch-Driven Oiler: Supplies chain oil when the chain is moving, helping minimize unnecessary oil consumption.
• Decompression Valve: Reduces the effort required when starting the engine.
• Digital Ignition: Provides consistent ignition performance.
• Vibration Reduction: Helps improve operator comfort during extended use.
• Multiple Bar Compatibility: Supports 18-, 20-, and 24-inch bar configurations for added versatility.

Warranty

The ECHO CS-590 Timber Wolf is backed by a 5-year consumer warranty and a 1-year commercial warranty, according to the provided product information.

At a Glance

Specification	Details
Model	ECHO CS-590 Timber Wolf
Manufacturer Part Number	CS-590-20
Engine Displacement	59.8 cc
Engine Type	2-cycle
Included Bar	20"
Compatible Bars	18", 20", 24"
Fuel Capacity	21.8 fl. oz.
Oil Capacity	10.2 fl. oz.
Dry Weight	13.2 lb.
Shipping Weight	21 lb.
Oiling System	Automatic / Adjustable
Ignition System	Digital
Sprocket Type	Spur
Consumer Warranty	5 years
Commercial Warranty	1 year
